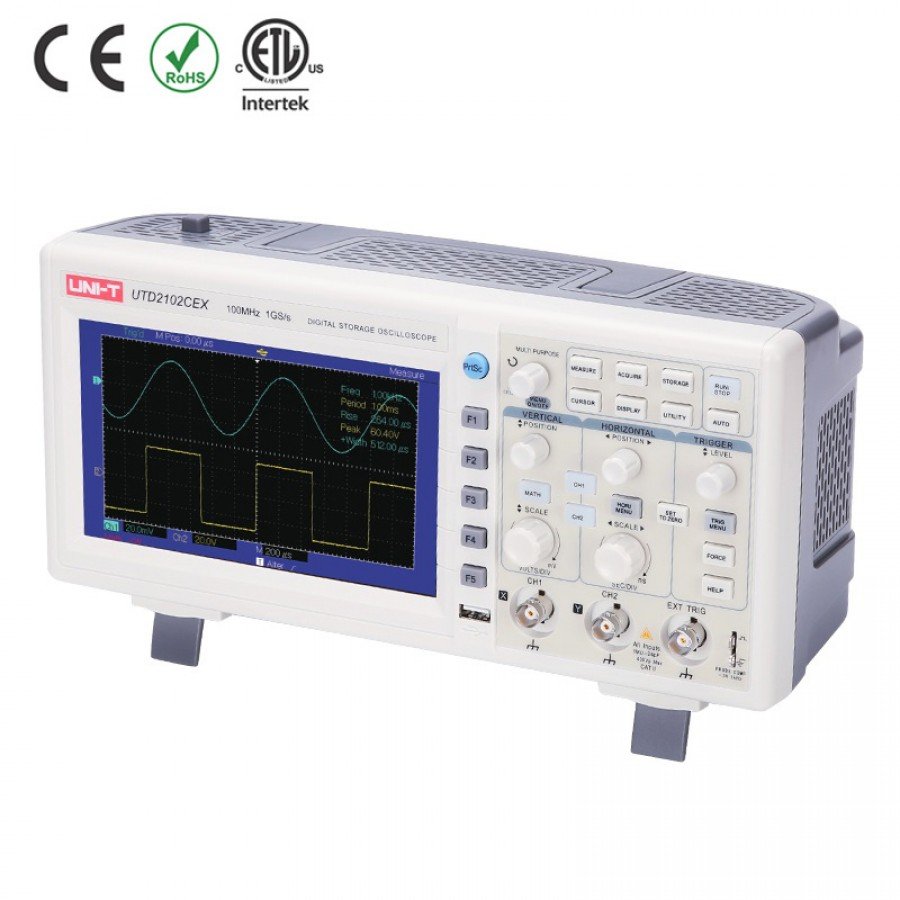

UTD2102CEX Digital Color Oscilloscope – B.W. 100MHz
8,000.00 EGP
UTD2102CEX Digital Color Oscilloscope – B.W. 100MHz
Out of stock
Email when stock available
Description
UTD2102CEX Digital Color Oscilloscope – B.W. 100MHz
SPECIFICATIONS:
Channels: 2
Bandwidth: 100 MHz
Sample Rate: 1GS/s
Rise Time: ≤ 3.5ns
Memory Depth: 25 kpts
Waveform Acquisition Rate: ≥ 2000 wfms/s
Vertical Sensitivity: 1mV ~ 20V/div
Time-Based Range: 2ns/div ~ 50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Pulse, Alternate
Interfaces: USB OTG
GENERAL CHARACTERISTICS:
Power: 100 – 240V AC RMS, 45Hz – 440Hz
Display: 7 Inches 64K Color TFT LCD (800 x 480)
Product Color: White and Grey
Product Net Weight: 2.2 kg
Product Size: 306mm x 147mm x 122mm
STANDARD ACCESSORIES:
Probe x 2 (1x, 10x switchable), Power Cord, USB Cable, PC Software CD
Manufacturer: UNI-TREND
