Fully intelligent automatic measurement digital multimeter, the digital multimeter in the measurement will automatically recognize and automatically display no need for human operation.
6000 counts and multifunction: display of 6000 counts and test of AC / DC voltage and current, resistance, capacitance.
Full protection: the body is equipped with a shockproof sleeve to prevent the instrument case from being damaged due to falling down, giving the body a full range of protection, and this protective cover can also be dustproof.
Easy to use and take: designed of compact and light, a bracket on the back for easy handling and placement.
Functions: LCD digital display, data hold, high voltage DC 1000V protection, low battery tips, auto power-off, live wire test, flashlight function.
Material: PVC plastic
Display: LCD display, 6000 counts
Power: 2 * AAA battery (not included)
DC voltage range: 6V/60V/600V/1000V
DC voltage resolution: 0.5%+4
AC voltage range: 6V/60V/600V/750V
AC voltage resolution: 0.8%+3
DC current range: 6A/10A
DC current resolution: 0.8%+8
AC current range: 6A/10A
AC current resolution: 1.0%+8
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance resolution: 0.8%+5
Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF/60mF, 30mF, 30mF (200Hz waveforms are for reference only)
Continuity test: about 0.6V
Data hold: yes
LCD backlight: yes
Low battery tips: yes
Auto shutdown: about 15 minutes
Environment: 18℃~28℃ (64℉~82℉) Relative humidity: ≤75%
LCD size: 50 * 33mm / 2.0 * 1.3in
Item size: 139 * 63 * 28.5mm / 5.5 * 2.5 * 1.1in
Item weight: 199g / 7.0ounce
Package size: 165 * 103 * 34mm / 6.5 * 4.1 * 1.3in
Package weight: 300g / 10.6ounce
1 * ET8103 Multimeter
1 * Test Lead
1 * Use Manual

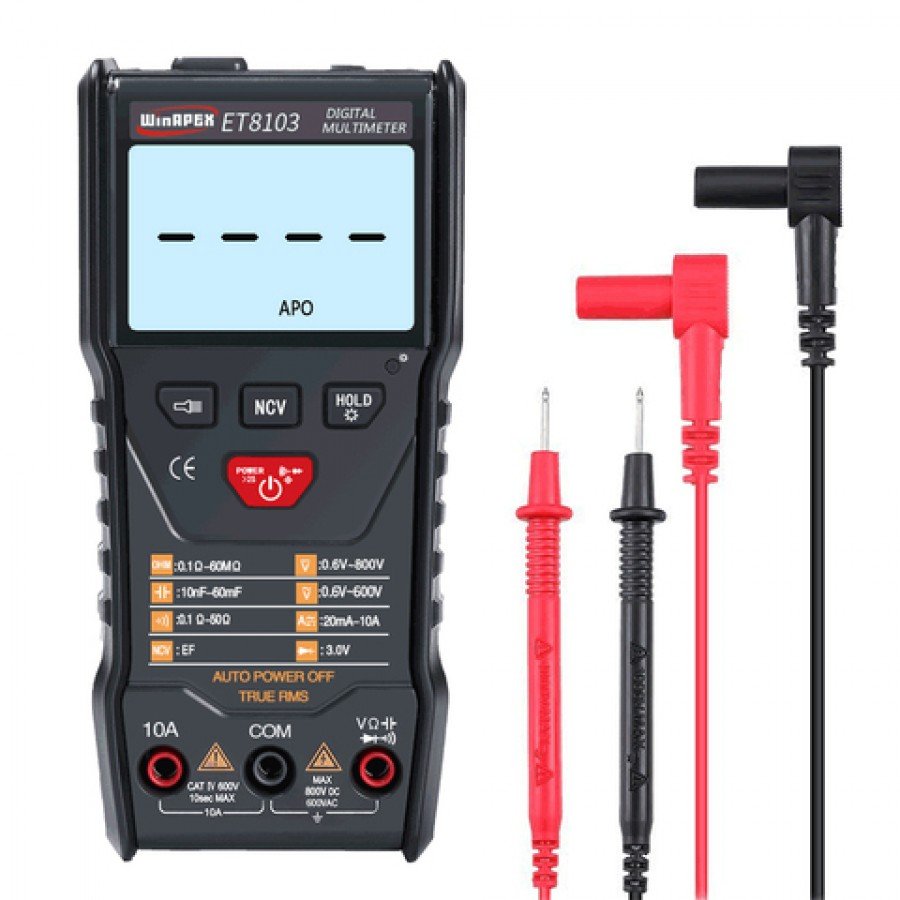

AVO ET8103 WinAPEX Auto Range
ET8103 Full Intelligent Digital Multimeter NCV True RMS Voltage Resistance Diode Mini Portable Multimeter Measure Tool
