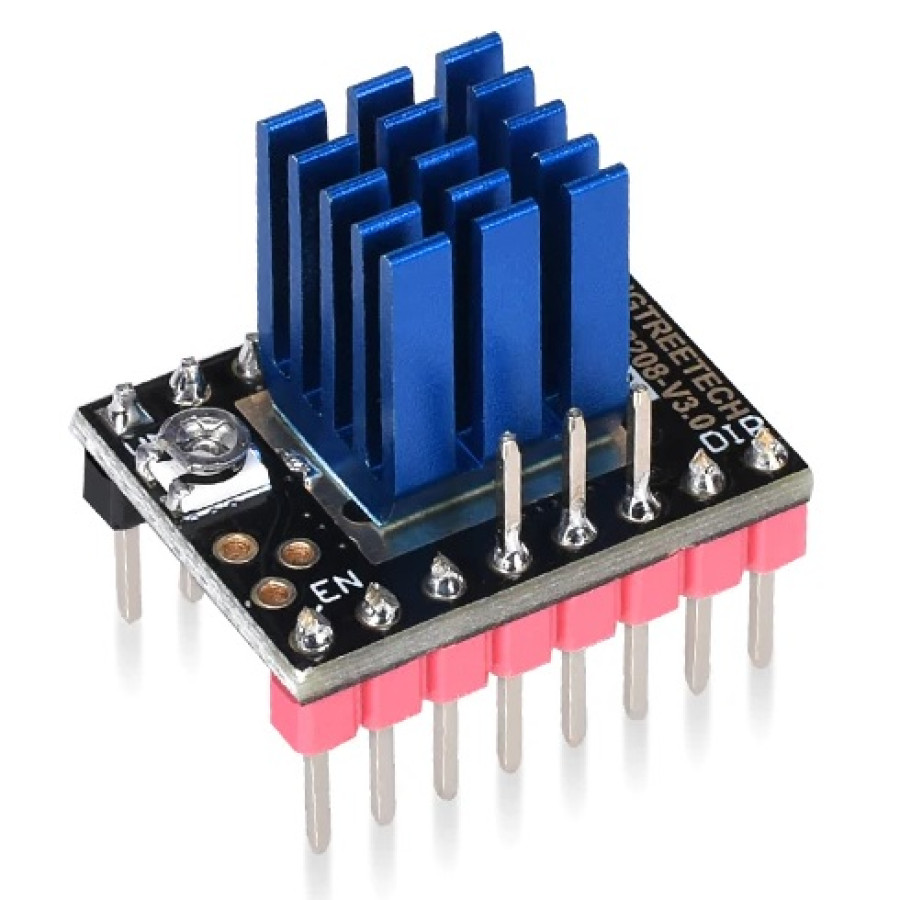

TMC2208 V2 Stepper Motor Driver

Description

TMC2208 V2 STEP/DIR Stepper Motor Driver Module

DESCRIPTION:
TMC2208 V3.0 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision with patented technology spreadCycle™ high chopper frequency, dcStep™, stallGuard2™ stall detection technology, CoolStep™ current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology. Support Single Wire UART for advanced configuration options.Integrated Pulse Generator for standalone motion.

256 microsteps per fullstep
Interpolation from lower input resolutions
StealthChop2™ – for quiet positioning
SpreadCycle™ – for high speed and high dynamics
Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
Voltage Range 4.75V/36VDC
Single Wire UART for advanced configuration options
Integrated Pulse Generator for standalone motion

NOTES:
TMC2208-V3.0 is available by defaut in UART mode.
