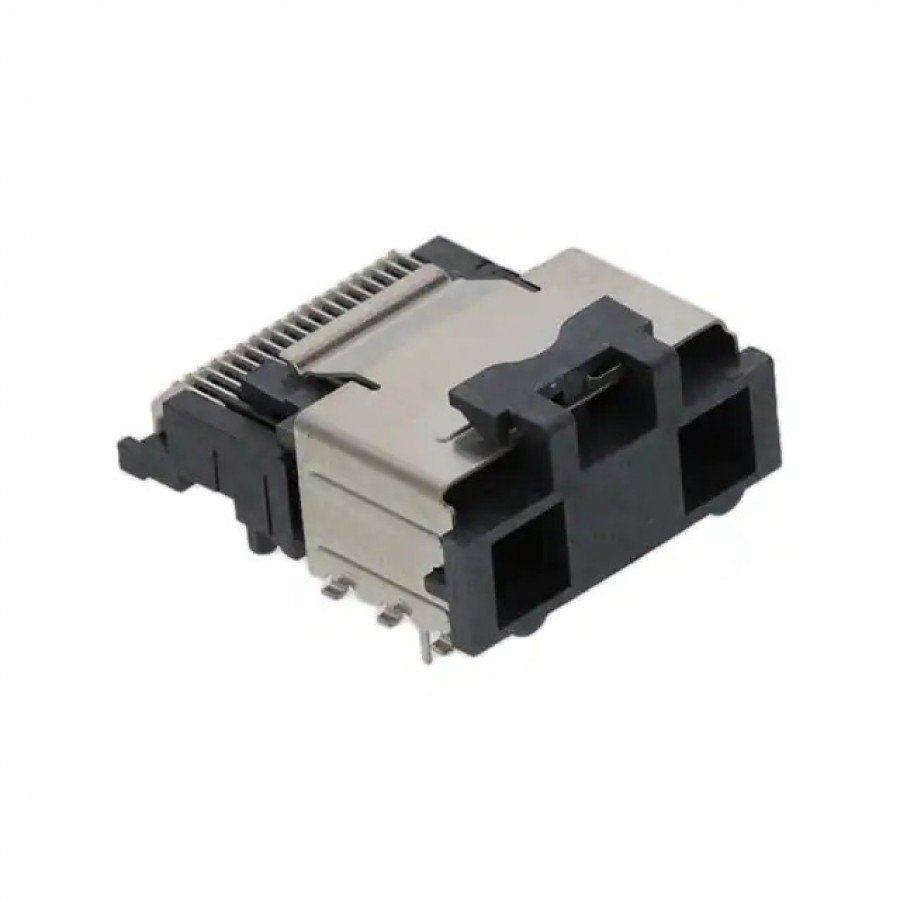

MOLEX 75783-0140
25.00 EGP
I/O Connector, 36 Contacts, Receptacle, SATA, Surface Mount, iPass 75783 Series, PCB Mount
In stock
Description
The 75783-0140 is a 1-port 36-circuit dual-row Universal Key iPass™ right-angle I/O surface-mount receptacle Internal Assembly with shell. The mini multi-lane, PCI express receptacle is made of copper-nickel-zinc, high performance alloy and high temperature thermoplastic resin with gold plating on mating area and tin plating on termination. It is for use with 79575, 79576, 74562, 74563, 79536, 74573, 74569 and 74586 iPass™ cable assemblies.
Maximum current per contact is 0.5A
Operating temperature range from -40°C to 80°C
Maximum durability of 50 mating cycles
Surface-mount and through-hole style termination interface
Manufacturer Part No 75783-0140
Manufacturer: MOLEX
Newark Part No.: 18M8262
Also Known As: GTIN UPC EAN: 822350225489
No. of Contacts: 36Contacts
Gender: Receptacle
Connector Type: SATA
Contact Termination Type: Surface Mount
Product Range: iPass 75783 Series
Connector Mounting: PCB Mount
Contact Plating: Gold Plated Contacts
Contact Material: Copper
