Lithium Battery Capacity Meter Panel

Description

Multifunctional 12–60V battery voltmeter with dual display (power + voltage), 8-stage LED bar, reverse polarity protection, and wide battery compatibility.

Description:

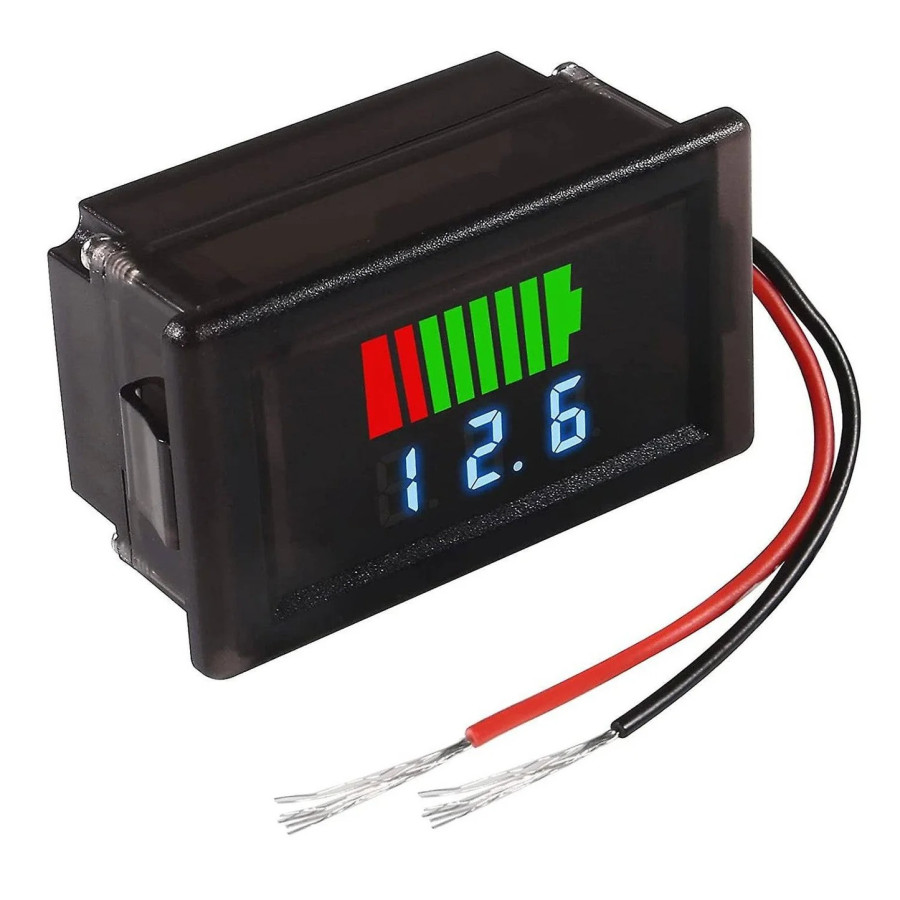

Dual Display 12–60V LED Battery Voltmeter with Power Indicator – Black

This compact digital meter combines a voltmeter and battery level indicator into one intuitive display. With dual output—voltage reading and an 8-bar power level—you can instantly monitor your battery’s condition. Compatible with a wide range of battery types, it is perfect for electric scooters, e-bikes, battery carts, and DIY power systems.

Key Features:

Dual Display – Voltage & Power
Top: 8-color bar graph (2 red, 6 green) shows battery level at a glance
Bottom: Numeric voltage display with auto-shifting decimal point for better precision
Wide Compatibility
Supports 12V, 24V, 36V, 48V, 60V battery systems
Compatible with lithium, lead-acid, nickel-metal hydride, and polymer batteries
Smart Operation
Auto voltage detection and display
Reverse polarity protection – safe from incorrect wiring
Easy Installation
Two-wire system for direct battery connection
Panel mounting with standard cut-out size (46 × 27 mm)
Specifications:

Model: 12 – 60 Vdc Battery Power & Voltage Meter
Measuring Range: 12V – 96Vdc
Material: ABS plastic
Display Type: 3 × 0.56″ LED tubes (digital + bar graph)
Power Level Bars: 8 stages – 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%
Voltage Accuracy: ±1%
Refresh Rate: ~300ms
Working Current: 5–15 mA
Operating Temp: –10°C to 65°C
Dimensions: 48 × 29 × 22 mm (L×W×D)
Mounting Hole Size: 46 × 27 mm
Lead Length: 15 cm
Color: Black
