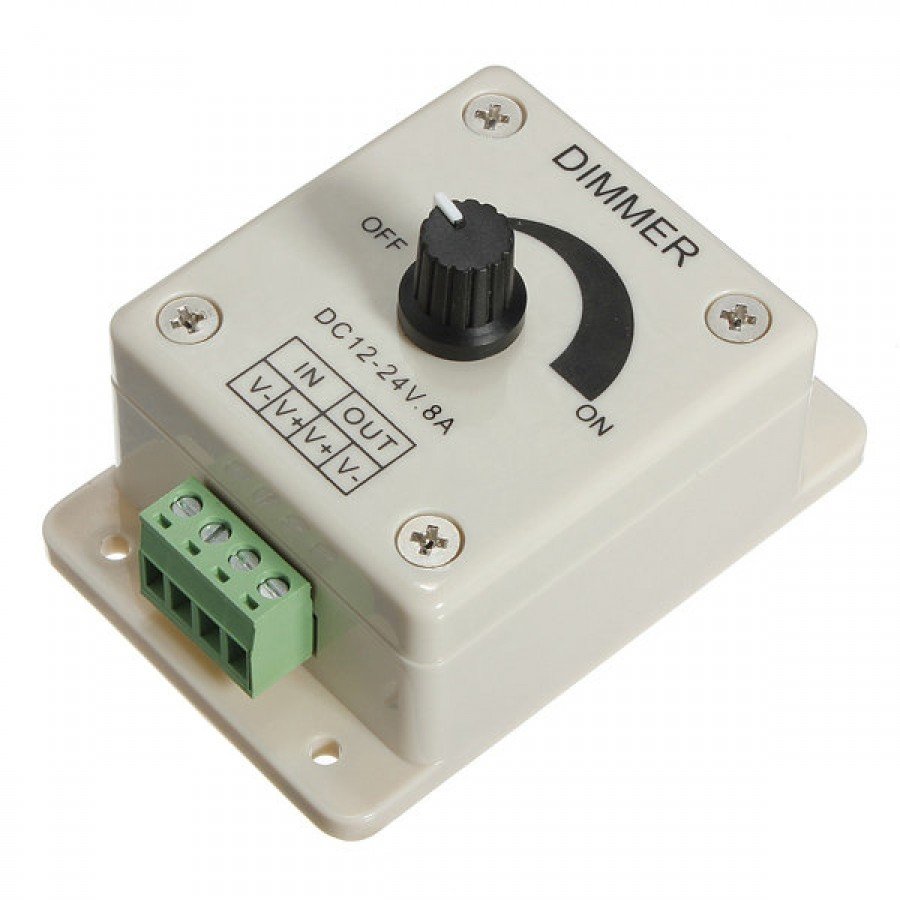

12V-24V 8A Adjustable Dimmer

Description:
Dimmer is a controller that can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the approriate lighting brightness in accordance with your actual need.

1. Technical parameters
Working temperature: -20—60℃
Supply voltage: DC 12-24V
Output: 1 channel
Extemal dimension: 89(L) * 59(W) * 35(H) mm
Packing size: 95(L) * 65(W) * 64(H) mm
Net weight: 75g
Static power consumption: <1w
Output current: 8A
Power output: 96-192W
2. Direction for use
Connect the Load wire at first, following by the power wire. Please ensure short circult can net occur betwwen connecting wire before you turn on the power.
Adopt rotary button, it’s function as follows:
Rotate button to the right, brightness will be brighter,when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker,when you rotate it to the far left, the light will be turned off.
